Rubber-backed Letter Sheet System

Description

The rubber-backed Letter Sheets are PhotoModeler Coded Targets printed on a laminated card with glued rubber backing. The rubber backing gives the targets weight and is anti-slip. Visit the Letter Sheet System page for further information on their use.

These are intended for use on flat surfaces and can be used outside without taping them down.  They are excellent for marine fabrication tasks such as deck measurement or canvas 3D templating/modeling.

Note that this product is for active PhotoModeler customers (or those sending photos to an active PhotoModeler customer). To complete the order, your PhotoModeler serial number (starting with P81) will be needed. You can place this in the order comments, or we will contact you by email to confirm. Note if you are evaluating you can print your targets for free.

The targets come formed in three sizes:

• The Sheets are ‘mousepad’ sized at 217 x 191 x 4 mm thick [8-1/2″ x  7-1/2″ x 5/32″].
• The 4×4″ Individual targets are ‘coaster’ sized at 102 x 102 x 4 mm thick [4″ x 4″ x 5/32″].
• The Small Rounds are ‘button’ sized at 67 mm diameter x 4 mm thick [2-5/8″ dia x 5/32″].

There are three (3) main sets and then bundles thereof:

• The Main Set includes eight (8) letter sheets, each sheet with six (6) unique Coded Targets, and 48 individual coaster-sized Coded Targets.  Letter Sheet A is designed to help set up the coordinate systems axes and all Letter Sheets have scales and edge offsets. The Main Set has LetterSheets A to H with a target ID range of 1 to 48, plus 48 individual targets with an ID range of 50 to 97. Overall the Main Set ID range is 1 to 97.
• The Expanded Set includes ten (10) letter sheets, each sheet with six (6) unique Coded Targets. The Expanded Set has LetterSheets I to R and a target ID range of 100 to 159.
• The Small Rounds Set includes 54 small round targets. The Small Rounds Set has a target ID range of 160 to 213.

Note 1: If starting always purchase a Main Set at least.

Note 2: You cannot use targets with the same ID number in a project, and your target ID numbers cannot overlap. See the ID number ranges above. The full range of ID numbers of all three sets combined is 1 to 213.

PhotoModeler can support coded target IDs above 213. We do not sell targets over ID 213, and instead, you can print them from the software on paper or have them fabricated.

Depending on which set or bundle you purchase, a different plastic case is included that can be used for transport and storage. [except if the rounds are ordered alone – they come in an envelope]

You can use any combination of the main, expanded, or small rounds sets in one project because the Coded Target IDs do not overlap; BUT you cannot mix two main sets, two expanded sets, or two rounds sets in one project or the target IDs will overlap and the project will not solve as you expect.

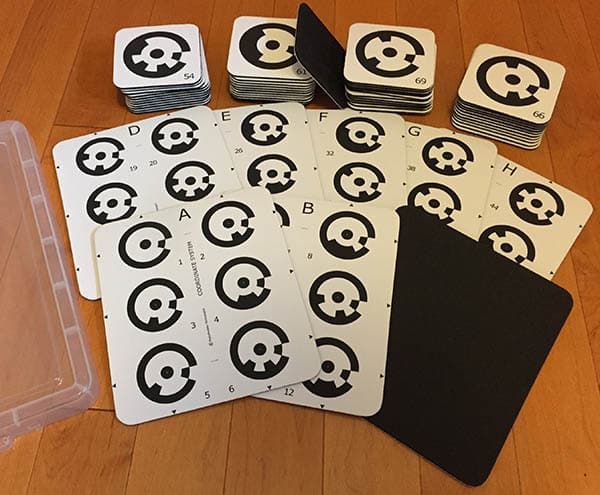

Close-up of the Main Set. Letter Sheets and individual 4″x4″.

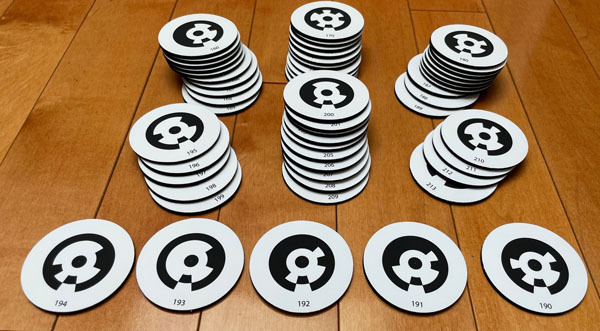

Close-up of small round targets.

Important notes

Out of stock, low stock, back-ordered: If the item is shown as out of stock or back-ordered, the usual restocking time is between 8 and 15 days. You can order during back-order periods to get yourself in the queue. Orders are filled in the queue order. Please contact sales@photomodeler.com to find out when stock is expected and where you will be in the back-order queue. During low stock periods, there is a limit of a single quantity ordered per customer. If you order when back-ordered, the estimated delivery date, shown during checkout, will not be accurate – you need to add the restocking time.

Outside of North America: Customers outside of North America (e.g. outside the USA and Canada) may have to pay duties, taxes, VAT, etc. on import. You are responsible for importation paperwork and fees.  If you cannot order on the checkout page because no shipping options are available to your address, please contact sales@photomodeler.com.
