Outline Table

Table

Description automatically generated

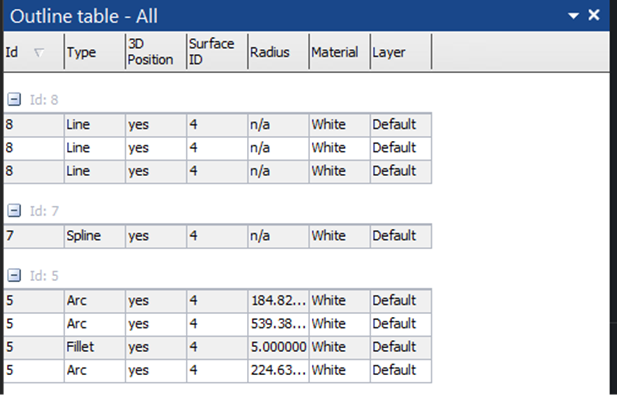

The Outline table displays properties of Outlines in a project. The Id, the type, whether it has a 3D position, the associated Surface ID, the Radius (where applicable, e.g. Fillet), and the Material and Layer.  See the Tables and Interaction With Tables sections above for background information on tables, various types and layouts.
