Preferences - Automated Target Projects

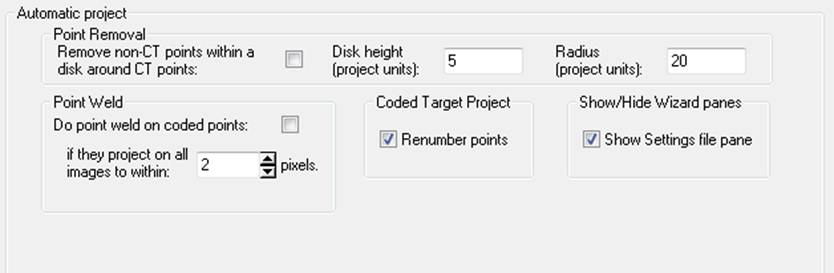

Process Options:

Graphical user interface, application, Word

Description automatically generated



Field

Description

Point Removal

Remove non-CT points within a disk around CT points

Non-coded points are deleted when they lie within a 3D ‘disk’ around a coded target point (see disk parameters below).

Disk Height

The height of the disk around a coded target point that will be searched for non-coded points (if the disk check is enabled). Value is in project units.

Disk Radius

The radius of the disk around a coded target point that will be searched for non-coded points (if the disk check is enabled). Value is in project units.

Point Weld

Do point weld on coded points

Coded target points can sometimes be mismarked due to code bit occlusion or distortion. Enabling this option allows the program to weld mismatched coded target points if their projection lies within the specified search distance (see search distance below).

If they project on all images to within

The distance in pixels of a projected coded target on a photo in which a mismatched coded target will be welded to another.

Show/Hide Panes

Show Settings file pane

When checked the pane asking for a settings file will be shown during the wizard, otherwise the pane will be skipped.

Show Coded Target Settings Pane

When checked the pane asking for default coded target settings will be shown during the wizard, otherwise the pane will be skipped and project Default Target Set (set above) will be used.

Other

Renumber Points

When checked and if there are a mix of coded and non-coded target points, coded target points will use their codes starting at 1, while non-coded targets will be renumbered sequentially starting at 1000.

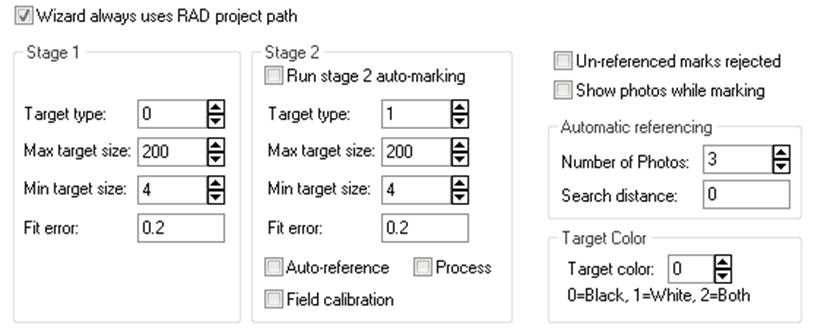

Stages:

Graphical user interface

Description automatically generated



Field

Description

Wizard always uses RAD project path

Check this to always use the RAD project path for a new automated project. Uncheck if you use non-RAD targets and want to select between a traditional coded target project path and a RAD project path.

Stage 1

Target type

Corresponds to the type of targets used during the autoproject. Use 0 for RAD targets, 1 for ringed dots, 2 for dot targets, 3 for 8-bit set, 4 for 10-bit set, 5 for 12-bit set, 6 for User-set. Typically for a RAD project, you’ll leave this at the default of 0.

Max target size

The maximum size of inner dot within the RAD target (in pixels).

Min target size

The minimum size of inner dot within the RAD target (in pixels).

Fit Error

When targets are occluded or somehow distorted, PhotoModeler can still find sufficient target area to mark, though the more distorted the target is, the higher the ‘Fit Error’.  There may be times when the mark is not as reliable due to the occlusion or distortion. If you lower the Fit Error threshold, more target marks will be ‘rejected’ and will not be marked.  Increasing the threshold will allow more marks to be ‘accepted’ and marked. The default value of 0.2 works well for most projects.

Stage 2

Run stage 2 auto-marking

Controls whether stage 2 automarking happens, where ringed dot or non-ringed dot targets are auto-marked, auto-referenced, and/or processed. Stage 1 typically processes coded targets, while stage 2 processes the non-coded targets.

Target type

Corresponds to the type of targets used during the autoproject 2nd stage. Use 1 for ringed dots or 2 for dot targets.

Max target size

The maximum size of the dot target (inner dot on a ringed dot target), in pixels.

Min target size

The minimum size of the dot target (inner dot on a ringed dot target), in pixels.

Fit Error

When targets are occluded or somehow distorted, PhotoModeler can still find sufficient target area to mark, though the more distorted the target is, the higher the ‘Fit Error’.  There may be times when the mark is not as reliable due to the occlusion or distortion. If you lower the Fit Error threshold, more target marks will be ‘rejected’ and will not be marked.  Increasing the threshold will allow more marks to be ‘accepted’ and marked. The default value of 0.2 works well for most projects.

Auto-reference

Whether autoreferencing is done after stage 2 auto-marking.

Process

Whether the project is processed after stage 2 auto-marking.

Field calibration

Whether the project is field calibrated during processing after stage 2 auto-marking.

Other

Un-referenced marks rejected

Controls whether points that have been marked but not automatically referenced get removed at the end of an autoproject.

Show photos while marking

Controls whether the photo is displayed after it has been automarked.

Target Color

The color of targets, i.e. black (on white), white (on black), or a mix.

Automatic Referencing

Number of photos

The minimum number of photos that a point needs to be marked on before it will be referenced during Automatic Referencing.

Search Distance

The distance that is scanned by the program from a potential referencing match during Automatic Referencing. When this setting is 0, the search distance used will be the maximum tightness of coded target points (in absolute units not percentage) after the first coded target marking and processing.
