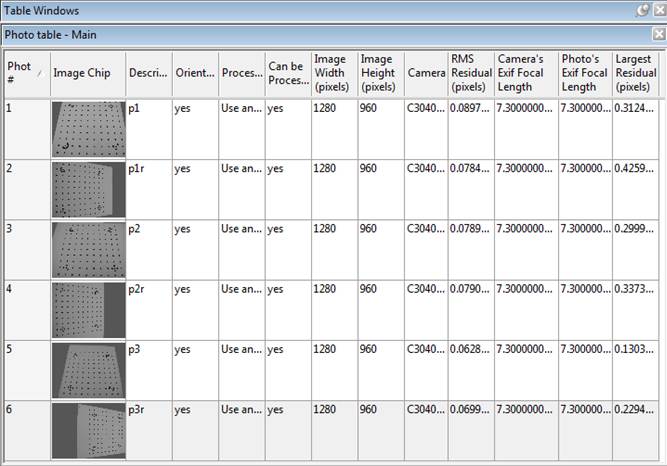

The Photo Table is a key capability of PhotoModeler for reviewing photograph, camera and camera station data. A Photo Table can be opened by clicking on a Photo Table tool from the View Tab (table gallery). A Photo table can be configured and then displayed using the Edit Tables Dialog.
See the sections below called Table Windows for more background on tables, configurability and user interaction.
The properties of Photographs and Camera Stations can be modified by selecting one or more of them in the table, right clicking and pressing the Properties of selected photo button. This brings up Photo Properties.
There are numerous columns and properties that can be displayed in the Photo Table:
|
Property |
Type |
Description |
|
Image Chip |
image |
Small version of the photograph. See Photo Chip. |
|
Photo # |
number |
Unique identifier number |
|
Description |
text |
User define photo name |
|
Camera Station Property |
Type |
Description |
|
Center X, Y, Z |
# units |
The Camera Station position in the current coordinate system. |
|
Omega, Phi, Kappa |
# degrees |
The Camera Station angles. |
|
Omega, Phi, Kappa Precisions |
# degrees |
The Camera Station angle precision values. Note that if the project has a coordinate system set up, "n/a - coordinates transformed" will be shown, since the precision values are calculated in a non-transformed coordinate system only. |
|
Target X, Y, Z |
# units |
A point at arbitrary distance that the camera is looking at. |
|
Roll Angle |
# degrees |
The roll angle about the above described direction vector. |
|
Oriented |
boolean |
Indicates whether the position and angles have been solved. |
|
Image Property |
Type |
Description |
|
Image Height |
# pixels |
The size of the image in |
|
Image Width |
# pixels |
numbers of pixels. |
|
Rotation |
# degrees |
The rotation of the photograph when displayed on the screen. |
|
File Name |
String |
The file name of the image |
|
Texture Mask Name |
String |
The file name of the texture mask image (see Texture and DSM Mask image file names) |
|
DSM Mask Name |
String |
The file name of the DSM mask image (see Texture and DSM Mask image file names) |
|
Processing & Quality Property |
Type |
Description |
|
Can be Processed |
boolean |
"yes" if this photo has sufficient information to process. |
|
Processing |
enum |
The user setting for how photo should be handled during processing |
|
Quality |
number |
The user setting for photo-texture extraction order. |
|
Largest Residual |
# pixels |
The largest Marking Residual on this photo. |
|
RMS Residual |
# pixels |
The RMS (root mean squared) Marking Residual on this photo. |
|
Inverse Focal Length |
boolean |
"yes" if InverseCamera solution for focal length is requested. |
|
Inverse Format Aspect |
boolean |
"yes" if InverseCamera solution for format size is requested. |
|
Inverse Principal Point |
boolean |
"yes" if InverseCamera solution for principal point is requested. |
|
Camera Property |
Type |
Description |
|
Camera |
string |
Name of the camera used by this photo. |
|
Focal Length |
# mm |
The focal length of that camera. |
|
Format Height |
# mm |
The size of the imaging format of that camera - height. |
|
Format Width |
# mm |
- and width |
|
Prin. Point X, Y |
# mm |
The principal point of that camera. |
|
K1, K2, K3, P1, P2 |
number |
Lens distortion parameters for that camera. |
|
35mm f |
# mm |
The 35mm camera equivalent focal length for digital cameras. |
|
FOV Horiz, Vert |
# degrees |
The field of view of that camera. |
|
Counts Property |
Type |
Description |
|
# Referenced Points |
number |
Number of points that are referenced on this photo. |
|
# Marks |
number |
Total number of all marks on this photo. |
|
# etc. |
number |
Various counts of lines, surfaces, curves etc. on this photo. |
